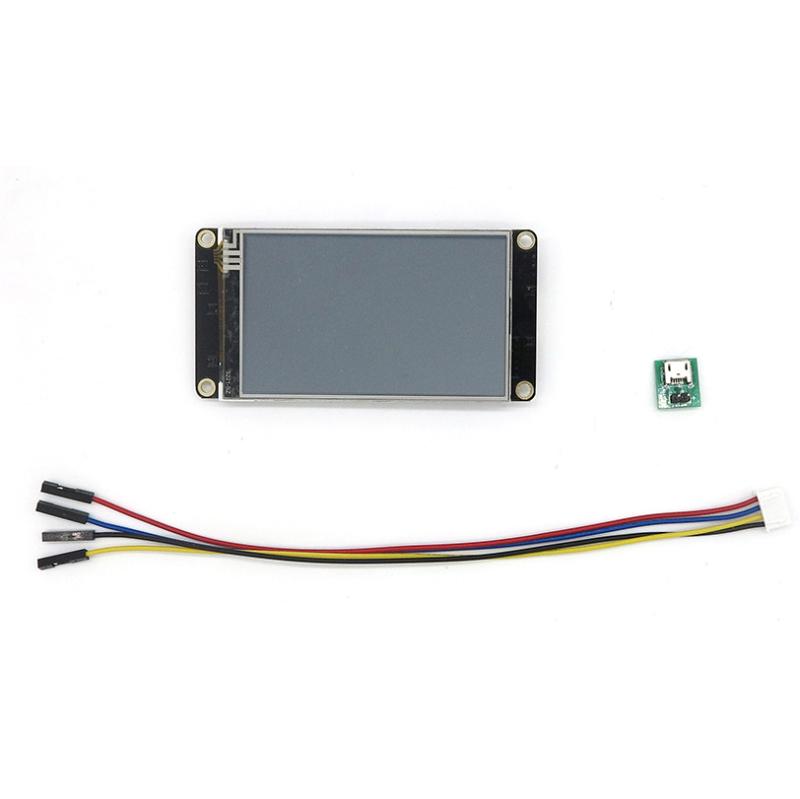

3.2" Nextion Enhanced NX4024K032 TFT

Nextion Enhanced NX4024K032 is a powerful 3.2" HMI TFT display, with 16MB Flash data storage space, 1024 byte EEPROM, 3584 byte RAM, on board RTC support. With GPIO supported, now you can use Nextion to control external devices.
11024
Your Price: €38.00
Weight: 75 g
Add to Cart Quantity On Hand:3
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock. As for older Nextions, user interface can be designed using Nextion Editor.

Features:
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
- Flash data storage space: 16MB
- EEPROM: 1024 bytes
- RAM: 3584 bytes
- Instruction buffer: 1024 bytes
- Color:65K (65536) colors
- Resolution:400×240 pixel
- Adjustable Brightness:0~180 nit- the interval of adjustment is 1%

Specification:
- Visual Area:69.60mm(L)×41.76mm(W)
- Layout size:95(L)×47.6(W)×5.55(H)
- Touch type: Resistive
- Backlight:LED
- Backlight lifetime (Average): >30,000 Hours
- Net Weight: 42.5 g
- Recommended power supply: 5V 500mA DC
