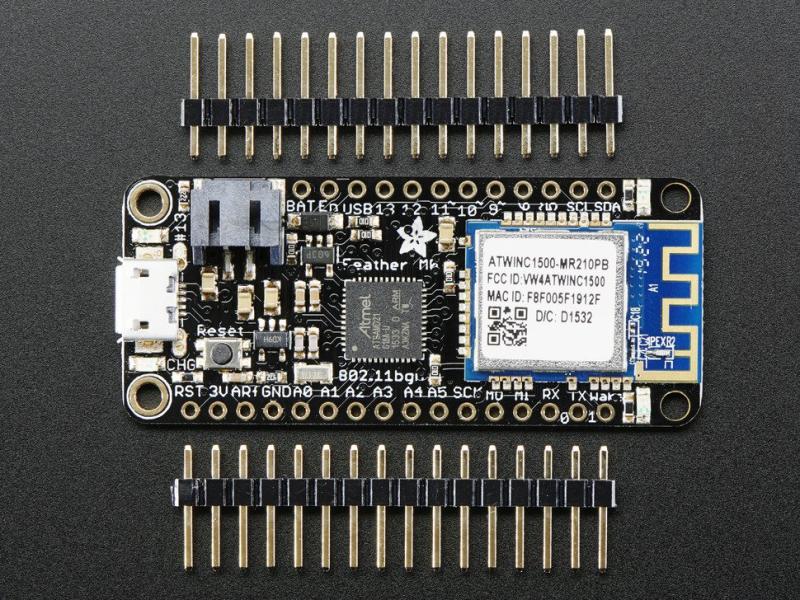

Adafruit Feather M0 WiFi - ATSAMD21 + ATWINC1500

This is the Adafruit Feather M0 WiFi w/ATWINC1500 - an 'all-in-one' Arduino-compatible + high speed, reliable WiFi with built in USB and battery charging. The module works with 802.11b, g, or n networks & supports WEP, WPA and WPA2 encryption. You can use it in Soft AP mode to create an ad-hoc network. This version comes with an onboard antenna.
10765
List Price: €44.85
Your Price: €31.37
Save: €13.48 (30%)
Weight: 10 g
Add to Cart Quantity On Hand:1


Specifications:
- 2.0" x 0.9" x 0.3" (51mm x 23mm x 8mm) without headers soldered in
- Light as a (large?) feather - 6.1 grams
- ATSAMD21G18 @ 48MHz with 3.3V logic/power
- 256KB of FLASH + 32KB of RAM
- No EEPROM
- 3.3V regulator with 600mA peak current output
- USB native support, comes with USB bootloader and serial port debugging
- 20 GPIO pins
- Hardware Serial, hardware I2C, hardware SPI support
- 8x PWM pins
- 10 x analog inputs
- 1 x analog ouput (DAC)
- Built in 200mA lipoly charger with charging status indicator LED
